Compression Screws

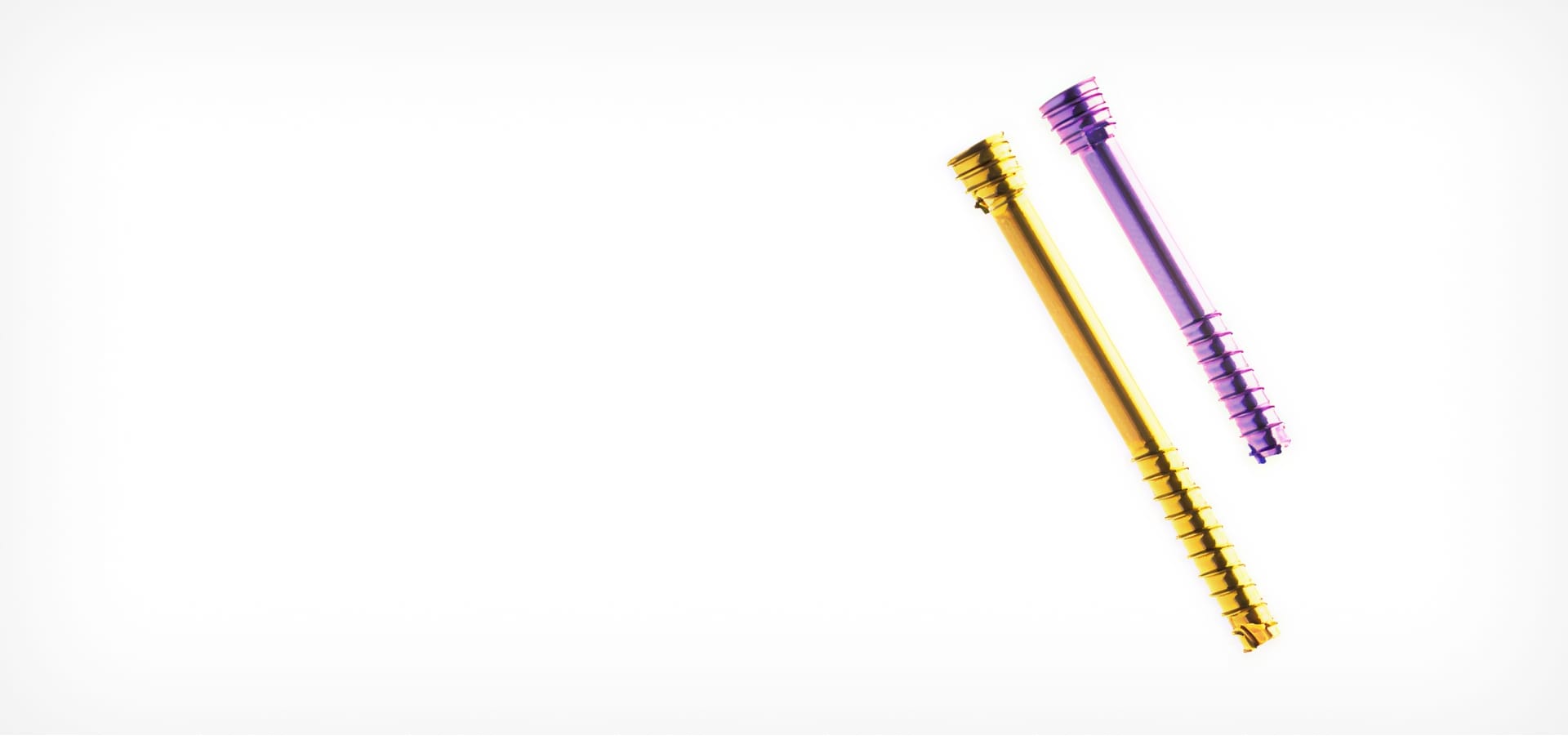

Titanium compression screws sterile-packed with the associated drill and guide wires for use with the Lapiplasty® Procedure and other common applications

Two colorful gradient screws on a white background, aligned diagonally and facing opposite directions.


FastPitch® Screws

The sterile-packed titanium FastPitch® 2.7mm High Pitch Locking Screws are designed with an increased thread pitch ratio between the locking head threads and bone threads, resulting in:

Plate Compression: High pitch compression ratio compresses the plate to the bone as screws lock in.1

Faster Insertion: Increased thread pitch results in 33% faster screw insertion.2

Lapiplasty® Compatibility: Locking screws compatible with all Lapiplasty® plating systems.*

Comparison of two locking screws with different pitch compression ratios, one gold and one blue, and a 50% increase note.

ARC-Lock™ Contour Locking Screw Technology

Arc-Lock™ Contour Locking Screw Technology utilizes the natural curvature of Lapiplasty® Biplanar Plates and the pitch compression ratio of locking screw to deliver joint compression1 while maintaining the stability of locking plate fixation.

Plate Compression

High pitch compression ratio compresses the plate to the bone as screws lock in.1

Far Cortex Compression

Increased thread pitch results in 33% faster screw insertion.2

Angular Correction

Locking screws compatible with all Lapiplasty® plating systems.*

How ARC-Lock™ Contour Locking Screw Technology Works

Illustration of a gap in a joint with bolts and a metal strip, labeled for illustrative purposes.

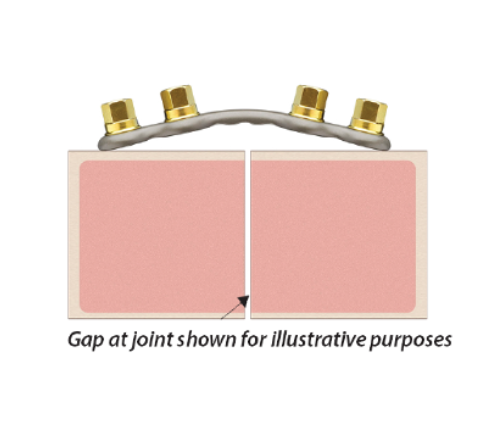

1. Pre-Contoured Curved Plate

Pre-contoured curvature of the Lapiplasty® Biplanar Locking Plate with the center arc of the plate off the bone.

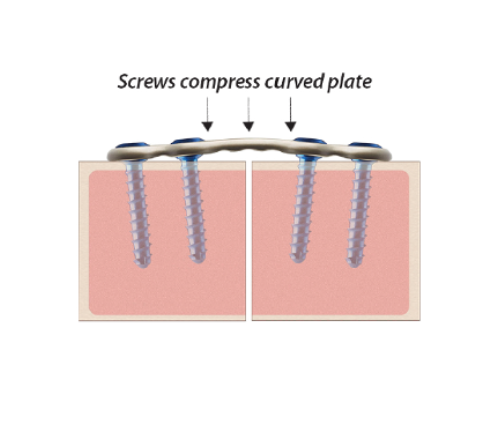

Screws compressing a curved plate across two separate sections, illustrating mechanical force application.

2. Plate Compress to Bone

Locking screws automatically compress the curved plate to the bone as the screws lock in.1

Illustration of a curved plate with screws showing elastic rebound, angular correction, and far cortex compression.

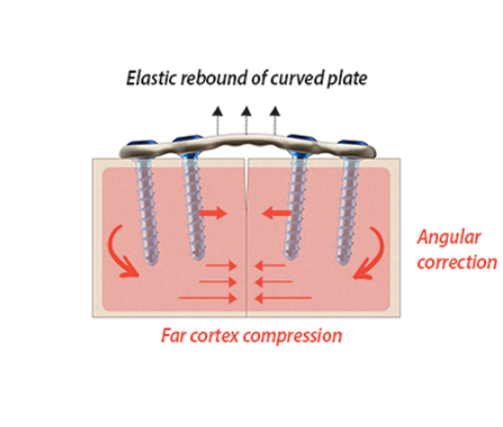

3. Elastic Rebound Compresses Joint

Elastic rebound of the compressed, curved plate results in angular correction and compression of the far cortex.3

Two colorful dental abutment screws, one purple and one yellow, displayed horizontally on a white background.

Headless Screws

Headless titanium compression screws for Akin osteotomies, tarsal-metatarsal fusions, and other applications.

SK20: 2.5x20mm and 2.5x28mm

SK26: 4.0x36mm and 4.0x40mm

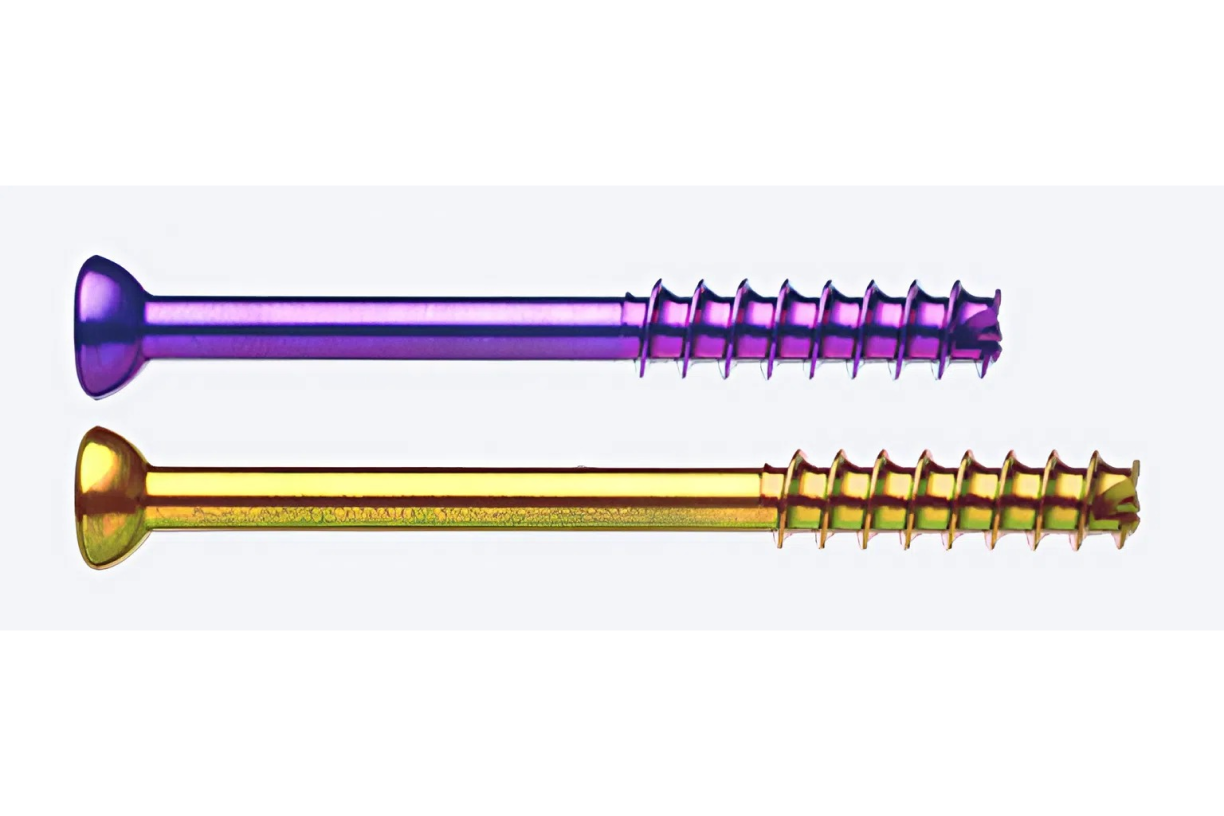

Two colorful orthopedic screws, one purple and one yellow, side by side against a white background.

Headed Interfrag Screws

Low-profile headed, titanium cannulated compression screws for tarsal-metatarsal fusions & other applications

SK18: 3.0x36mm and 3.0x40mm

SK25: 4.0x36mm and 4.0x40mm

Two colorful screws, one purple and one yellow, with detailed ridges, displayed horizontally on a white background.

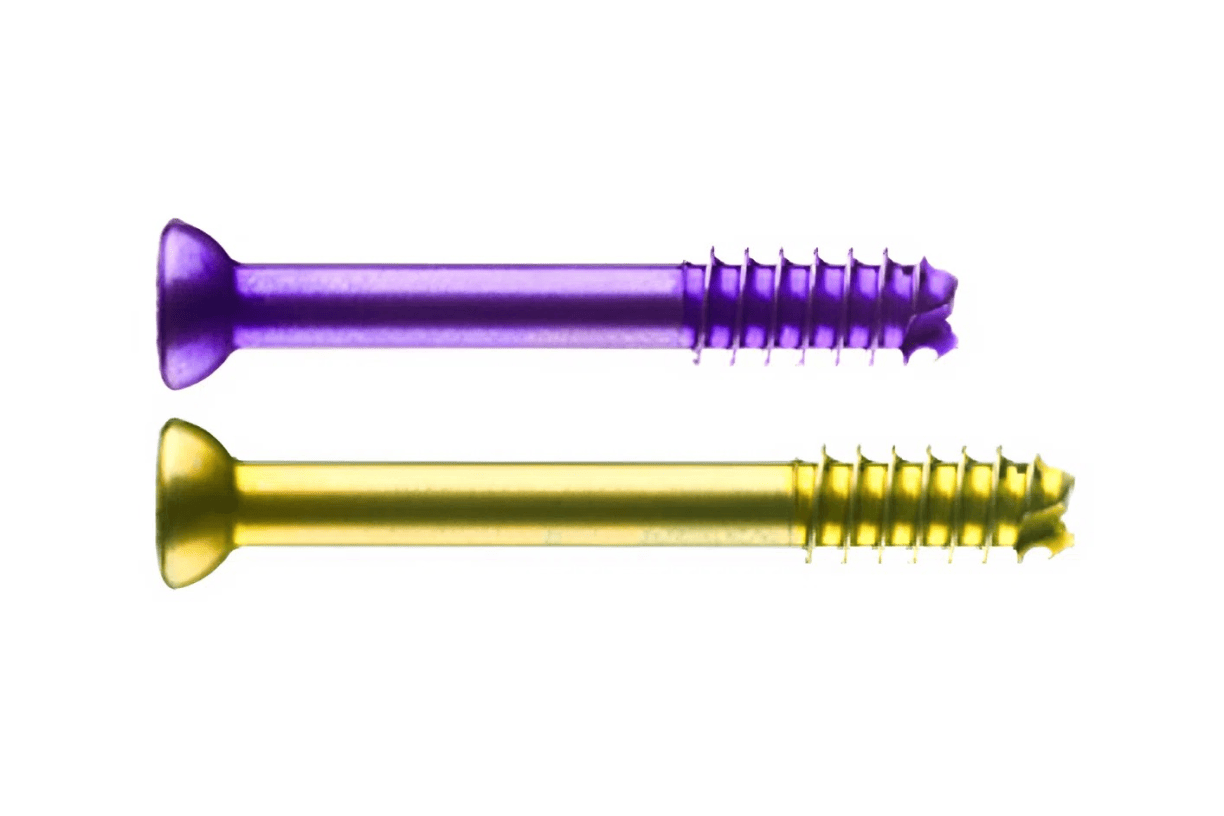

Transverse Screws

Low-profile headed, titanium cannulated compression screws for tarsal fusion & other applications

SK19: 3.5x23mm and 3.5x26mm

Two metallic screws, one purple and one gold, both with a sleek design, placed side by side on a white background.

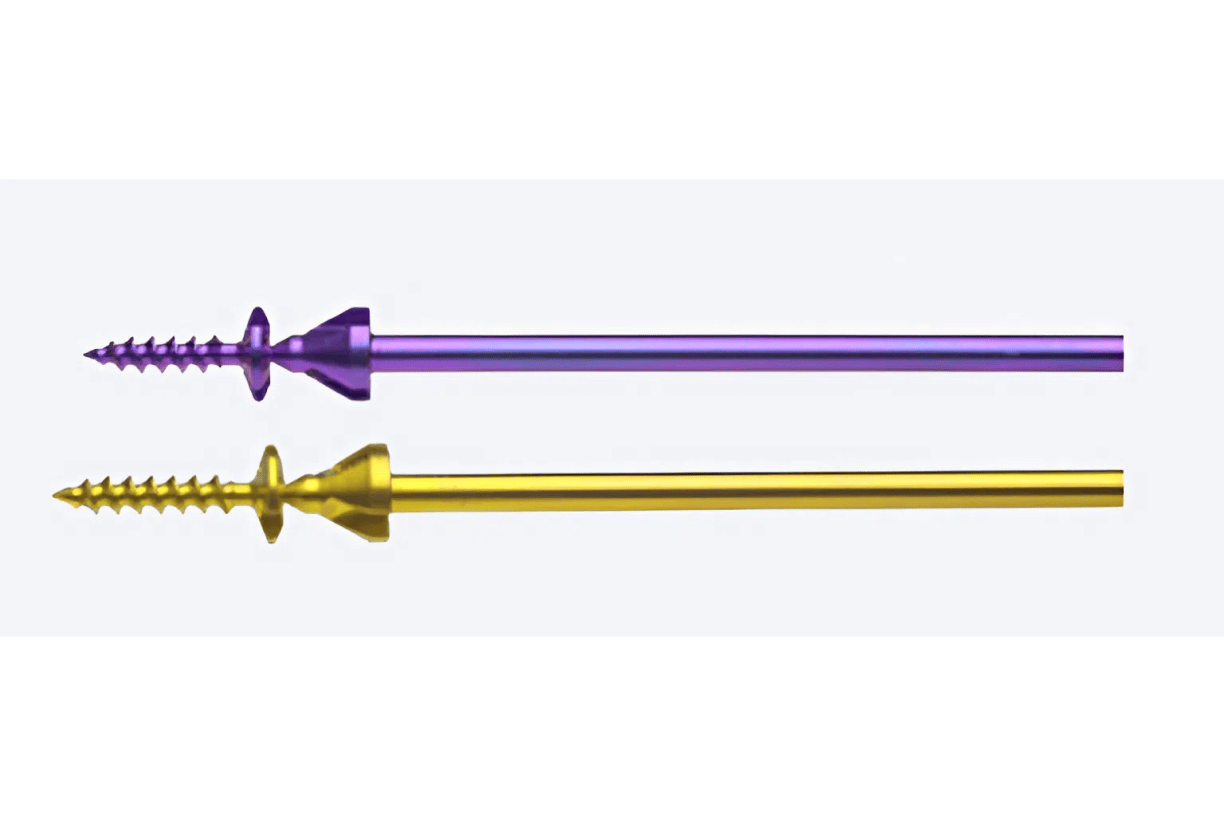

Snap-Off Screws

Titanium snap-off screws for Weil osteotomies & other applications

SK21: 2.0x12mm and 2.0x14mm

Supporting Documents

Lapiplasty® Brochure

FastPitch® Screws Overview

Screw Fixation Instructions for Use

Snap-Off Screw Instructions for Use

Compression Implant Instructions for Use

Plating System Instructions for Use

Related Products

Surgical tool for bone alignment with orange knob and metal frame, shown with bone model.

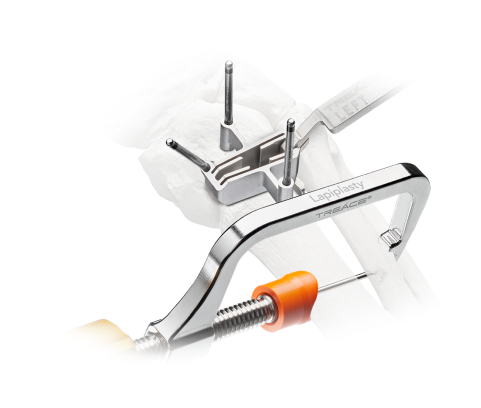

Lapiplasty®

Streamlined instrumentation helps visualize and dial in precise 3D corrections and ensures the correction is maintained throughout the procedure.

Dental drill extracting a sample from a molar tooth model.

FastGrafter®

Fully-sterile system for quick and efficient harvest of autogenous bone.

Got Questions?

For more information or to get trained on Treace’s comprehensive 3D Correction® systems, give us a call or complete the form.

1. TMC Data on File (ER 1405-0289)
2. TMC Data on File (ER 1405-0313)
3. TMC Data on File (ER 1405-0290)

M4176A
