Anatomic Biplanar Implants
Next-generation anatomic implants designed to accommodate the 3D anatomy of the tarsometatarsal joint

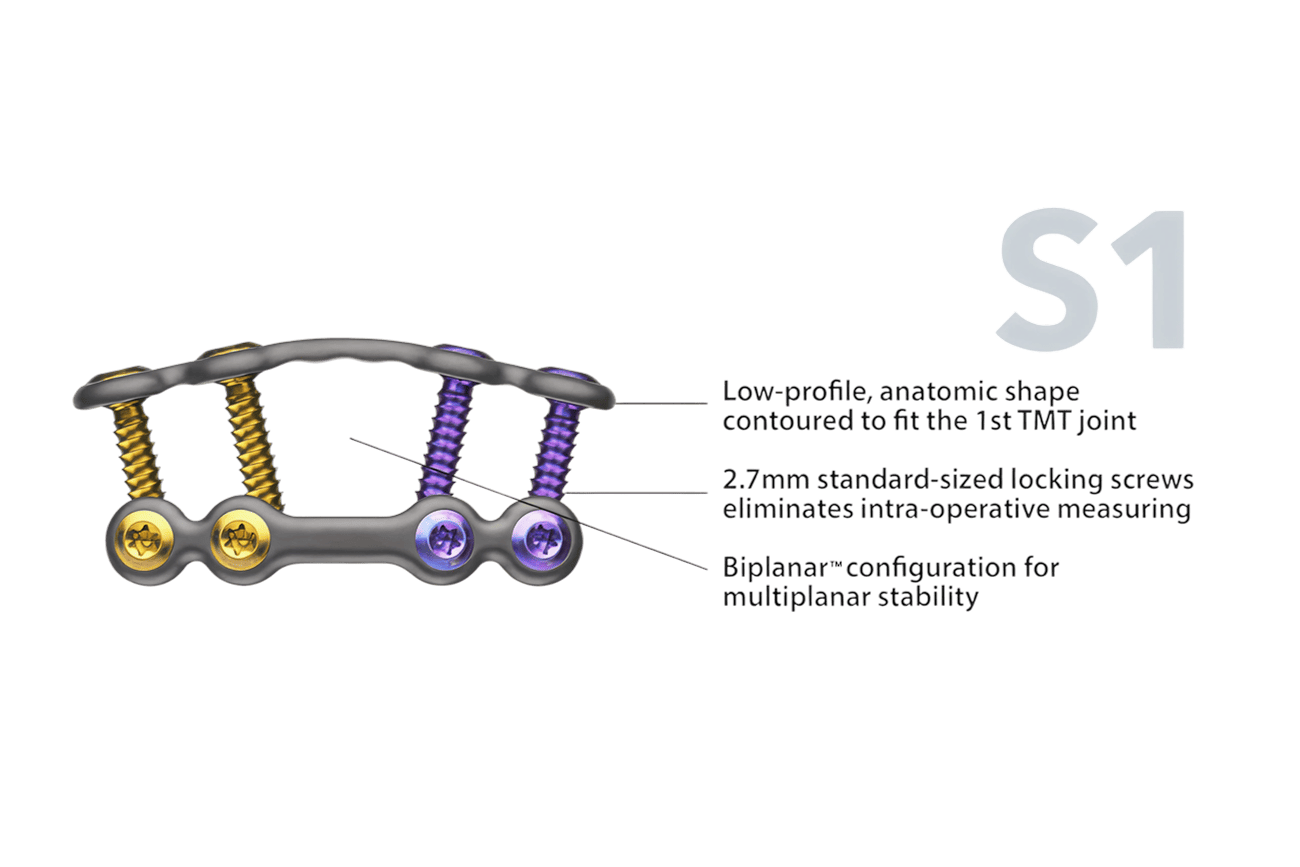

Lapiplasty® System 1
Sterile-packed Biplanar Plating kit for versatility to fit each patient’s anatomy, while delivering multiplanar strength.
Plate Material
Type II Titanium Alloy
Plate Width
3.6mm
Locking Screws
2.7x12mm (5)
2.7x14mm (4)

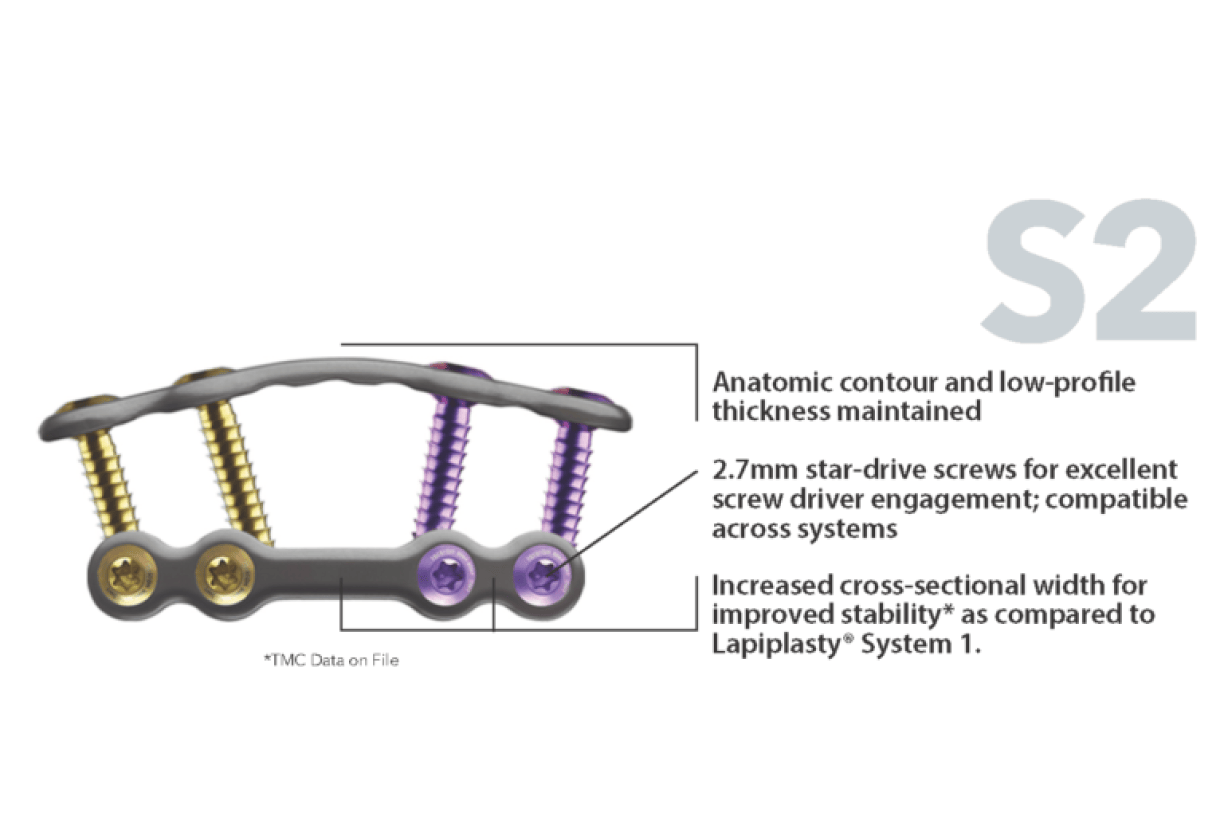

Lapiplasty® System 2
An evolution of Biplanar Plating with increased cross-sectional width for additional construct strength.
Plate Material
Type II Titanium Alloy
Plate Width
3.9mm
Locking Screws
2.7x12mm (5)
2.7x14mm (4)

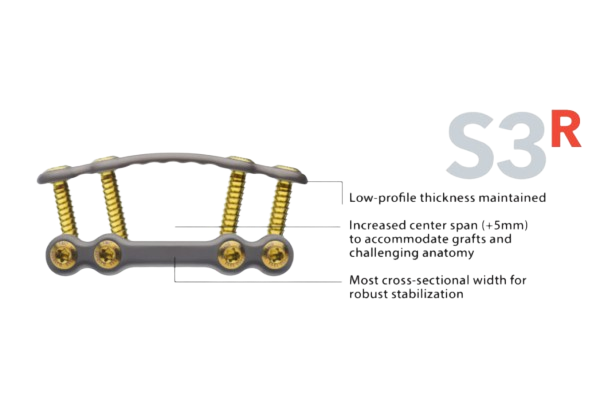

Lapiplasty® System 3R
Versatile Biplanar Plating option with widest cross-section, 3.0mm screws, and increased span to address revision cases and challenging anatomy.
Plate Material
Type II Titanium Alloy
Plate Width
4.3mm
Locking Screws
3.0x12mm (4)
3.0x16mm (8)

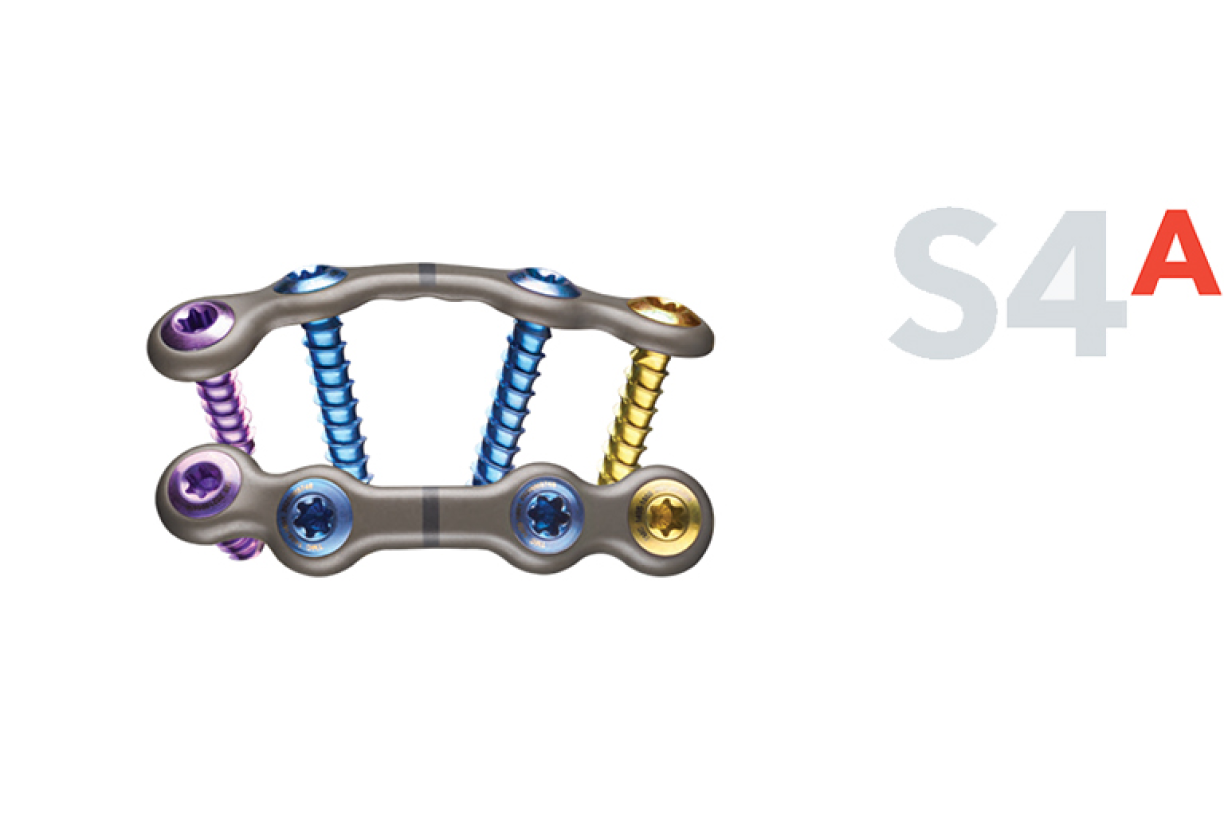

Lapiplasty® System 4A
Next-generation Multiplanar Plating option with an advanced, 3D proximal contour designed to conform to the anatomy of the tarsometatarsal joint.
Plate Width
3.9mm
Locking Screws
Not Included
Biomechanically Proven for Rapid Weight-Bearing
Biomechanical test specimens were constructed using Sawbones® surrogate bone models (Pacific Research Laboratories Inc, Vashon, WA) and tested in cantilever bending to simulate functional 1st TMT joint loading. The testing included both static ultimate failure and cyclic load to failure. Three different studies were performed under this test protocol, which are detailed below.
Supporting Documents
Lapiplasty® S4A® Brochure
Lapiplasty® Brochure
Instructions for Use
Surgical Technique Guide
Got Questions?
For more information or to get trained on Treace’s comprehensive 3D Correction® systems, give us a call or complete the form.
